BDI 5G & Wi-Fi 6 and CPE Smart Router System

Description：

Supports 5G NR/TDD-LTE/FDD-LTE multi-mode connectivity with Wi-Fi 6 (802.11ax) for gigabit wireless coverage and hybrid Mesh networking. Features 4 Gigabit LAN ports, 1 RJ11 voice port (VoNR/VoLTE ready), 2GB Flash + 2GB DDR3, and IPv6/IPv4 dual stack with VPN protocols. Covers global 5G (N41/N77/N78/N79) and LTE bands, delivering 23dBm high-power signals. Carrier SIM lock, NAT/router/bridge modes, and 117×117×180mm compact design make it ideal for industrial IoT, smart communities, and beyond.

Features: 5G cellular network, Wi-Fi 6 (802.11ax), increased wireless capacity, hybrid mesh network, and connectivity.

RF  standard: 5G NR(3GPP Release 15 )/TDD-LTE/FDD-LTE
Flash: 2 Gb
RAM: DDR3 2 Gb

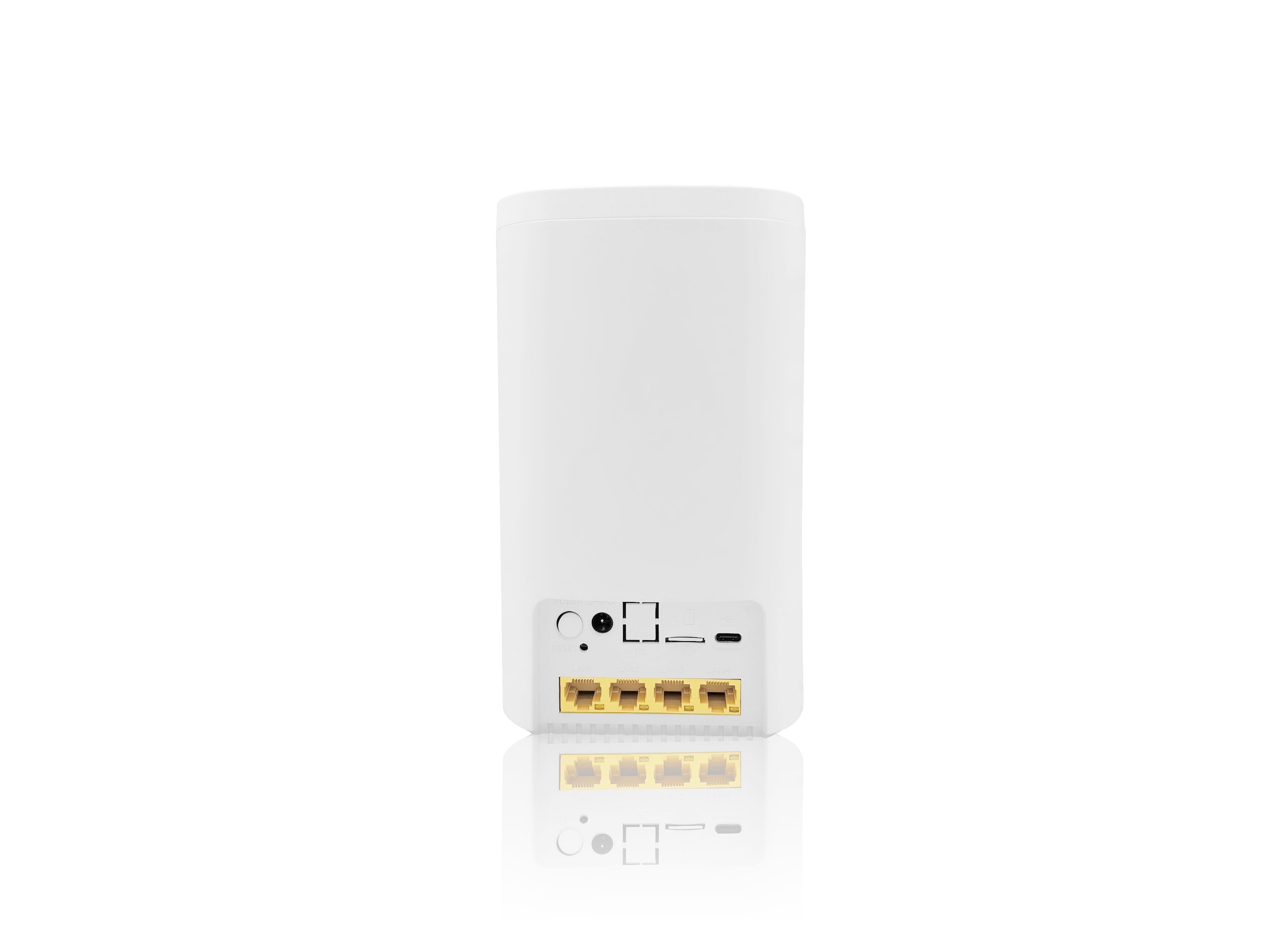

Ethernet LAN : 4 * Gigabit RJ45 LAN Ports
10/100/1000 auto-sensing,
Voice POTS : 1* RJ11 support VoNR/VoLTE or VOIP

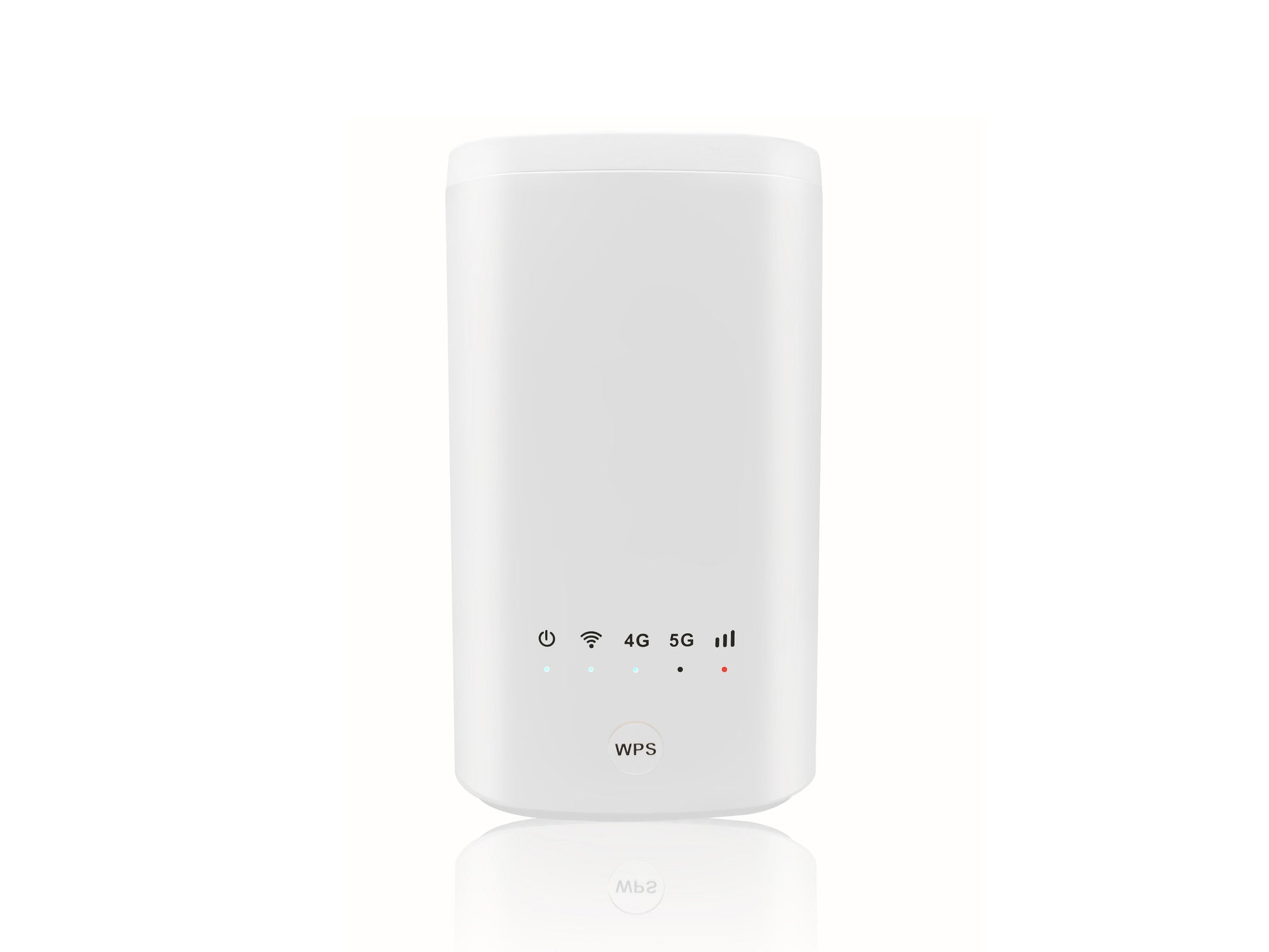

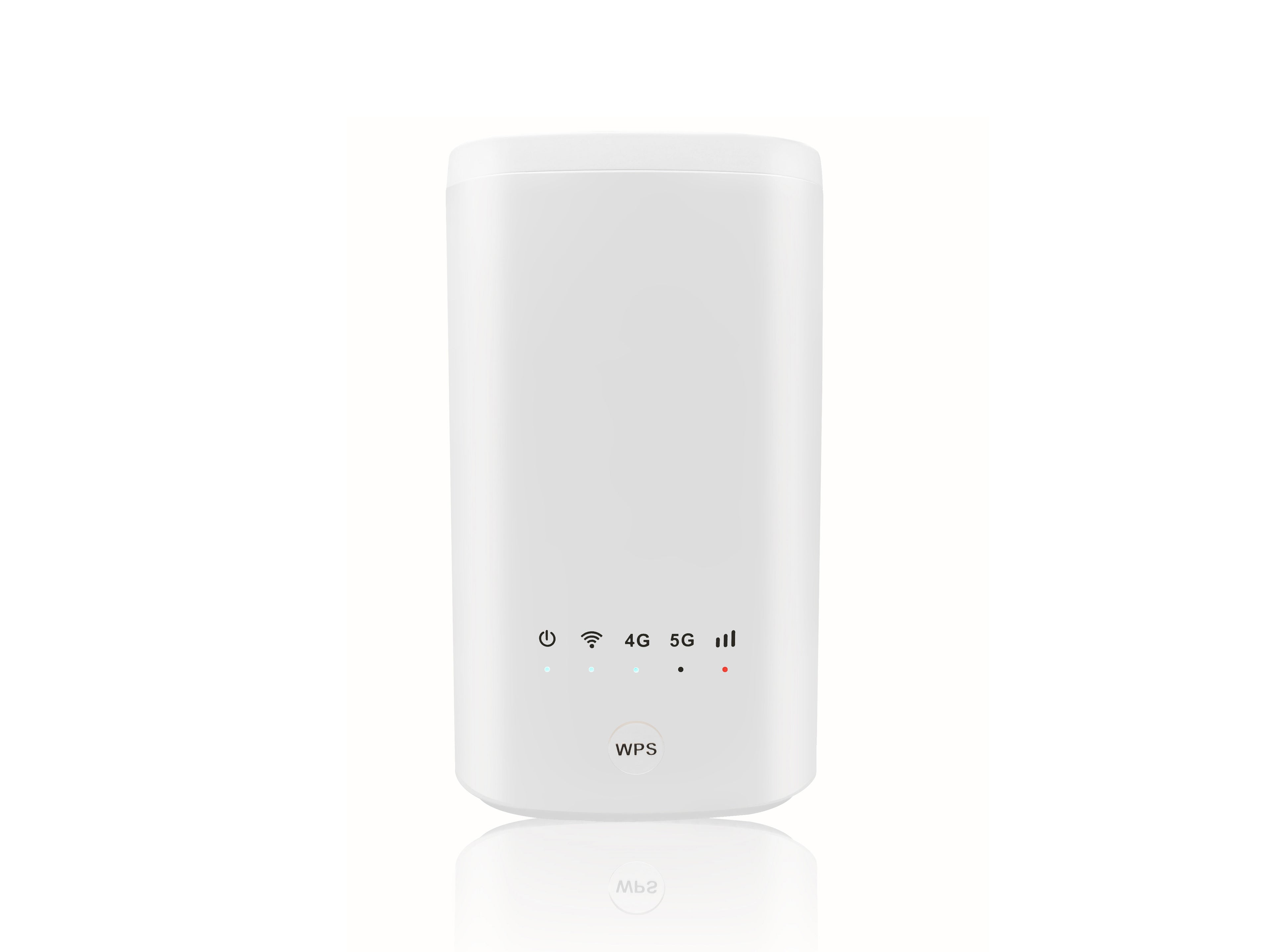

LED: 5 LED Indicators (PWR, 5G/LTE, 5G Wi-Fi, 2.4G Wi-Fi, Network Signal)
SIM: 1 SIM (FF)
Support 1,8V & 3.3V
Size: 117mm*117mm*180mm
Support Bands:  NR: N41/ N77/N78/N79
FDD: B1/B2/B3/ B5/B7/B8
TDD: B34/B39/B40/B41
Output Power: 5G NR: 23+-2dBm
LTE: 23+-2dBm
VPN: PPTP/L2TP/SSL VPN/GRE/IP SEC
IPV6: IPv6/IPv4 dual stack
Cell lock: Support
Voice: Support VoNR/VoLTE or VOIP
Carrier SIM Lock: Support
Work mode : NAT/ Bridge/ Router mode
